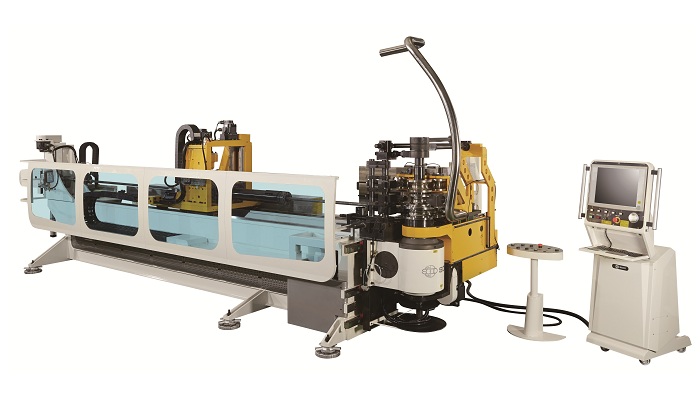

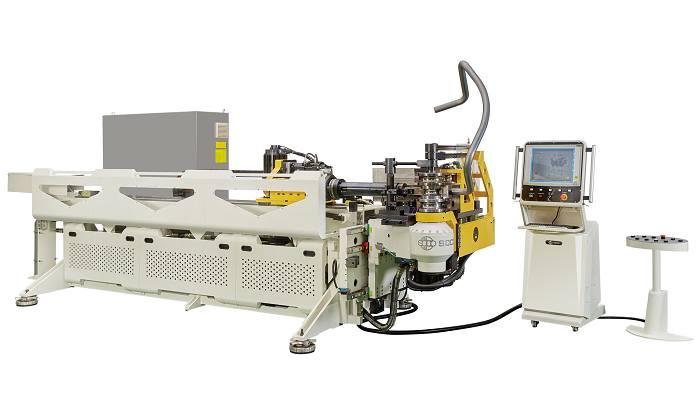

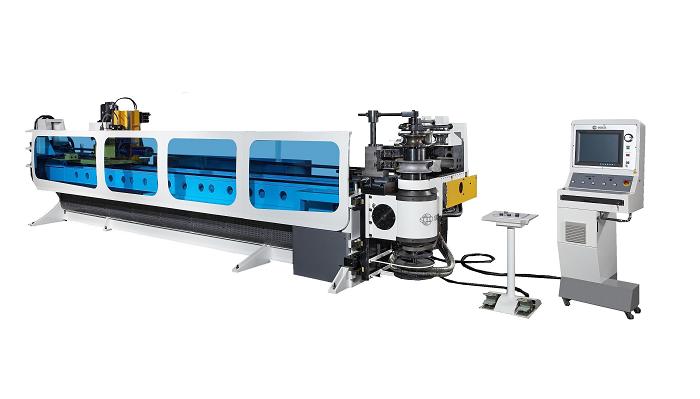

The V series CNC tube benders combine Draw, Roll and 1D Bending technology. This combination allows 2 different fixed radiuses and multiple large roll bending radiuses in a single part, as well as a programmable carriage boost for CLR = 1D bending. Coupled with individual pressure die system assist in each draw bending stack, it brings superior performance and flexibility.
The MRV series tube bender offers small radius bending + roll bending + 1D bending in the same machine.
Machine features:
- SOCO’s unique DGT technology
- SOCO i2 controls
- Multi-stacks for draw and roll (large radius) bending
- Programmable boost force for 1D bending
- Ability to bend parts with “0” straight lengths
- Programmable arc lengths for large radiuses
- Roll bending spring-back compensation and data storage fields
- Low noise level with highest transmission performance
- 63mm – 100mm range may be equipped with SOCO DBS system (2C – double blades shearing) (optional)
