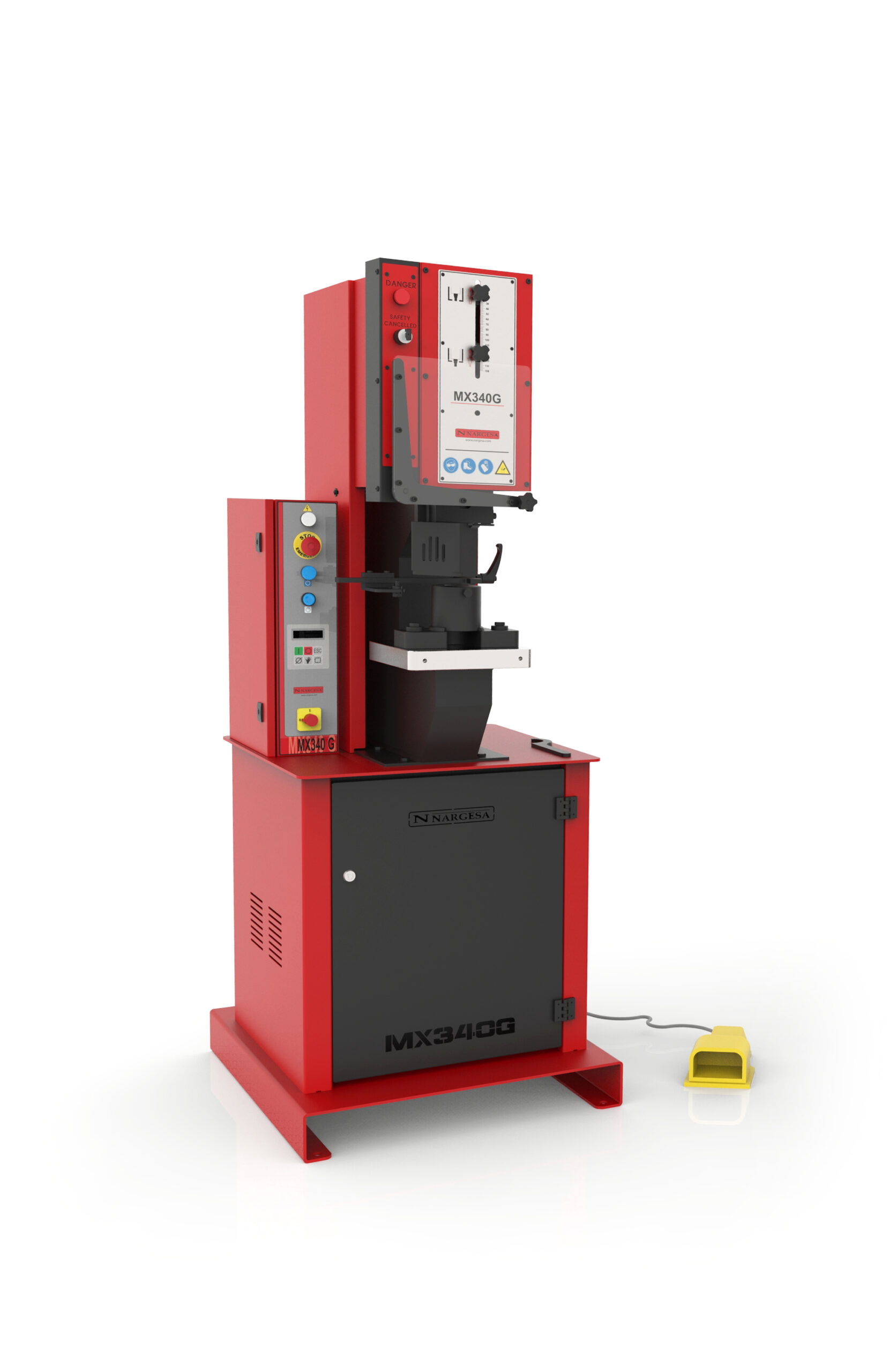

Hydraulic Punching and Shearing Machine MX340G




Model: Hydraulic Punching and Shearing Machine MX340G

The MX340G Hydraulic Punching and Shearing Machine from NARGESA is an all-purpose ironworker machine offering more than 40 tons of hydraulic power. Its neck, displacement, and wide working table make it a versatile tool capable of piercing, folding, cutting, inlaying, and more.

This punching machine is characterized by its versatility and ability to perform several functions, including punching metal sheets, flat bars, pipes, angles, U profiles, T profiles, UPN, IPN, bending, cutting, inlaying, pipe notching, tube embossing, and more. It can be adapted to any kind of tooling, even those made by customers themselves. Its versatility and ease of use make it an essential item in any metalworking workshop.

All Nargesa products conform to the European CE regulations for industrial machinery manufacturing.

Gallery

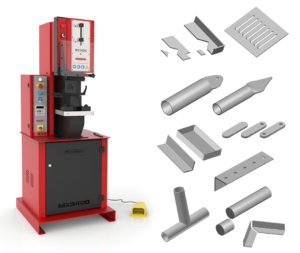

MX340G Metalworking Machinery with Langbow
MX340 Metalworking Machinery with Langbow

Technical Features:

  • Hydraulic power: 40 Tn.
  • Working speed: 7,1 mm/sec.
  • Return speed: 9,3 mm/sec.
  • Punch displacement: 100 mm.
  • Neck: 180 mm.
  • Table Dimensions: 245×265 mm.
  • Swinging front safety protection.
  • Activation with safety pedal.
  • Digital display.
  • Parts and strokes counter.
  • Alarm diagnose.
  • Motor power: 2,2 KW/ 3 HP.
  • Tension 3 phase: 230/400 V. For other tensions or single-phased machines, please contact the manufacturer.
  • Palletized lower bench to move it easily to the working site or storage.
  • The machine is delivered completely mounted.
  • Packaging with steel pallet and 3-layered cardboard box suitable for sea freight.
  • Optional: Complete fumigated wooden packaging NIMF15.

Punching:

All types of punches can be supplied, including round, square, oval, and lock punches. It’s also possible to punch a pipe.

Other Applications:

The MX340G offers over 40 standard tooling options to perform different jobs. See the Optional Tooling section at the bottom of the page for more information. If customers require it, custom tooling can be manufactured to make all kinds of parts.

Advantages:

The MX340G stands out from other multifunctional universal punching machines due to its 180mm gooseneck, 100mm displacement, and wide working table that can fit any kind of tooling. Many customers make their own tooling, and with a fast change of tooling in just 30 seconds, the MX340G allows for efficient productivity. Additionally, there is no maximum dimension for punching.

Standard Equipment:

All Nargesa Hydraulic Punching Machines come equipped with the punching tool that includes the fitting nut for punches and the base holder for dies. The rest of the accessories are optional, allowing customers to equip their machine as desired.

Manufacturing:

All of our products are manufactured in our facilities in Spain. Our hydraulic and electrical components are sourced from leading European trademarks, including Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, and Pizzato, offering technical support worldwide.
