Description:

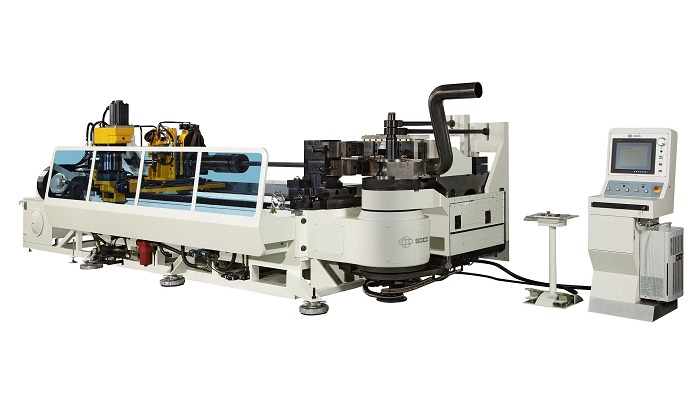

With models that extend up to 0168mm capacity, the SOCO CNC 6B series tube bender brings the optimal tube bending power and accuracy solutions for the automotive, trucking, buses, boiler, ship building and other heavy industries.
Features & Functions:
Equipped with a Mandrel bender, this system offers precise and reliable tube-bending capabilities.
- 6 individually programmable axes
- Max. Ø168mm capacity
- Individually controllable pressure die assists for Each Bending Stack
- Programmable 2 speeds early mandrel extraction
- Each axis may be individually programmed during arm return mode
- SOCO proprietary control software with IPC & Touch Screen
- Built-in wiper die, pressure die and clamping die seats
- High accuracy and repeatability ( + 0.1mm/+ 0.1° for all axes)
- Ability for 10 Bending (*) and Roll Bending (**)
- Single and multi-stacks models
- Standard with Automatic Mandrel Lubrication System
- Centralised greasing and lubrication system for all sliding areas
(*) Depending on tube 0.D. and elongation ratio
(**) May be added by request – 25V models
