Non-mandrel tube and pipe bender CC90 CNC




Model: Non-mandrel tube and pipe bender CC90 CNC

The CC90 Non-mandrel tube and pipe bender is a new generation machine that can bend up to 180º curves on hollow profiles. With a maximum working stroke of 88.9 mm or 3” Schedule 40 or 3” 1/2 Whitworth or 3” ISO x 6 mm, it ensures the best bent finishes in today’s market. The machine’s sleek look, versatility, and faster bending speeds make it one of the best options in the industry. It can bend materials that are round, oval, square, rectangular, and made of different metals such as steel, aluminum, stainless steel, and copper.

All of Nargesa’s products, including the CC90 pipe bender, are in compliance with CE regulations for the manufacturing of industrial machinery.

Gallery

CC90 Metalworking Machinery with Langbow

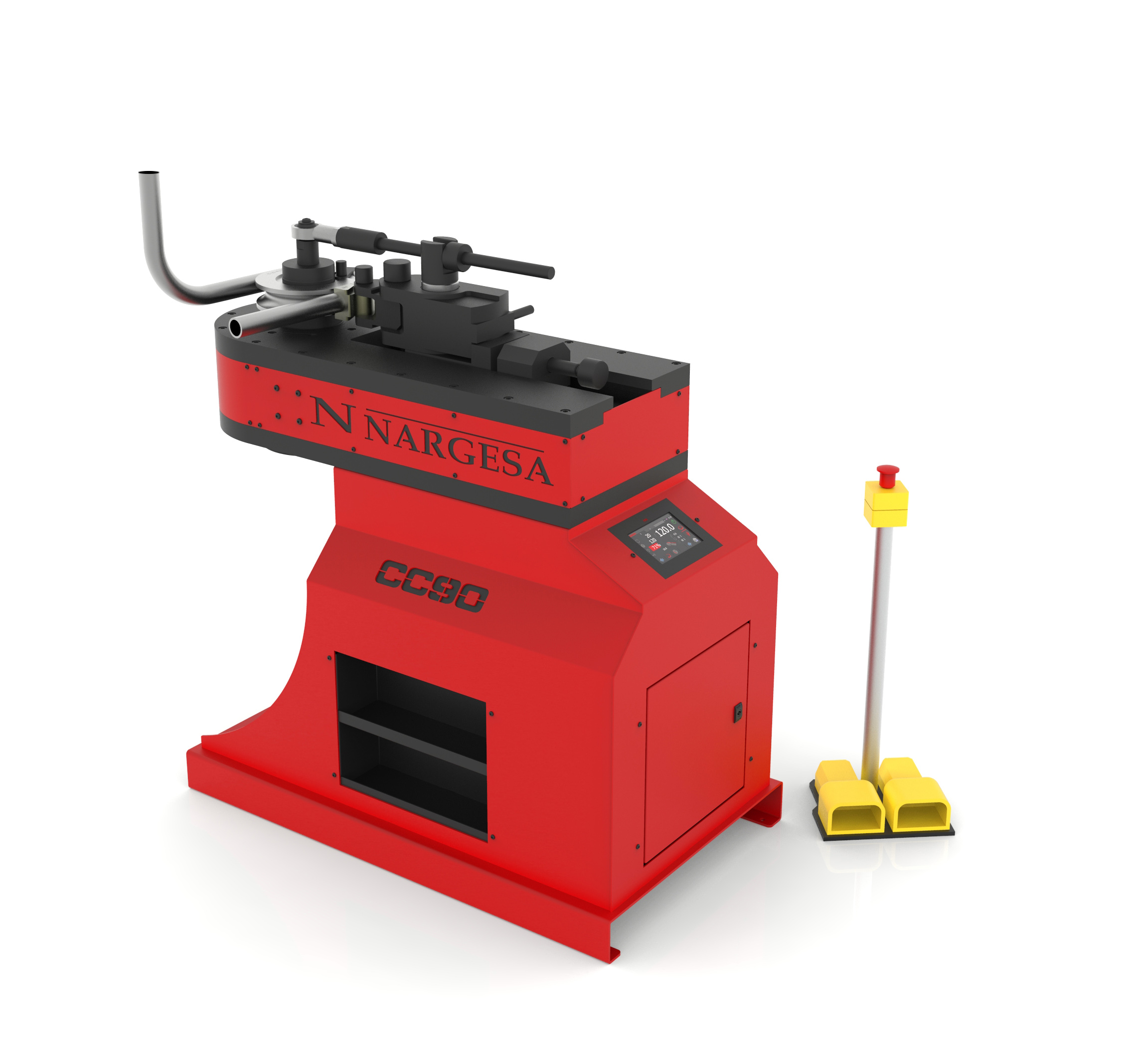

CC90 Metalworking Machinery with Langbow
CC90 Metalworking Machinery with Langbow

Technical Features:

  • Maximum size on S275 round steel pipe: 90mm or 3” Schedule or 3” 1/2 Whitworth or 3” ISO x 6mm
  • Maximum size on aluminum pipe: 88,9mm x 10 mm / 3″1/2 x .393″
  • Maximum size on stainless steel pipe 304 /316: 88,9mm x 4mm / 3″1/2 x .157″
  • Maximum size on square tube: 60x60x4mm / 2.362″ x 2.362″ x .157″
  • Maximum angle of curvature: 180º
  • Automatic rotation speed from 0,75 up 2,2 rpm
  • Minimum radius of curvature: 3 times the pipe diameter
  • Maximum radius of curvature: 346 mm or 13,60”
  • Repetition on the curve of +/- 0.1 degrees
  • Reinforcement tool post support arm for pipes with diameters over 40 mm included
  • 400 ml BEND 8 lubricant included
  • Two bending directions, right or left for easier bending
  • Quick die change over: Maximum 60 seconds
  • CNC control with 7” touchscreen with more than 20 different languages
  • Safety pedal to the right and left
  • Side shelving to store tools
  • All bend dies are made of tempered steel for longer tool life
  • The counter dies are made of bronze alloys to help prevent markings on the outside of the bent profiles
  • Stores up to 10,000 programs
  • Up to 50 different angles on the same piece can be programmed
  • Dimensions can be programmed in inches or millimeters
  • Pivot system with automatic unlocking to help remove material
  • Automatic and programmable spring back correction
  • Automatic unlocking
  • Automatic and programmable springback
  • Offset head for complex parts
  • Reinforcement tool post support included
  • Packaging included
  • Motor power: 2,2 KW / 3 HP
  • Electrical voltage: 230/400V Three-phased 50/60Hz
  • Intensity: 9/5 A
  • Machine weight: 860Kg
  • A lower pallet bench to transport the machine to the worksite or storage
  • The CC90 pipe bender is sent completely assembled
  • 3-layer cardboard box suitable for seafreight
  • Optional: NIMF15 wooden container

All of Nargesa’s products are manufactured in their facilities in Spain, using hydraulic and electrical components that are standard from the best leading European trademarks with technical support all over the world, such as Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, and Pizzato.
