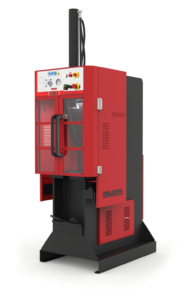

Vertical Broaching Machines Technical Features:
- The Vertical Broaching machine BM25 is designed for small to medium productions
- It is versatile, reliable, easy to use, fast in setting up, and effective
- Can make small and big pieces with all kinds of broaching and different tolerances
- Makes 2 mm keyways from 2 up to 25mm or 1” inch
- Can be used as a press to unbolt oxidated parts, assembling, and dismantling bearings
- Broaching pressure regulator with a pressure manometer
Structure:
- Welded and mechanized steel monoblock structure
- Mechanized single-block bench
- Lower bench palletized to move the machine easily to the working site or storage
- LED front lighting
- Manual operation for better broaching control
- Low noise level which improves the working quality of the operator
- Front polycarbonate protection that allows to see the broaching process
- Front opening with safety hinges
- Tooling supplied as standard for the positioning of the parts
- Hydraulic oil CEPSA HYDRAULIC HM 68
Broaches:
- The broaches are one of the best trademarks in the market, manufactured in the USA under strict quality controls
- Broaches in millimeters and inches
- Broaches of different kinds and tolerances: ISO J-9, ISO P-9
- Shims are provided with each broach, used for accomplishing the required tolerance
Control Panel:
- Intuitive and easy to use control panel
- Conversion chart from pressure to tons
- Broaching pressure regulator with pressure manometer
Safety Measures:
- The Broaching machine BM25 incorporates all safety devices according to CE regulations
- 300mm neck allows to broach pieces up to 600mm in diameter, without any problem
- Two front doors incorporate polycarbonate windows for the operator to control the broaching process in total safety
- Proper lighting inside the broaching cabin for the operator to control the whole broaching process
- Removable drawer for chips collection
- Pressure regulator and pressure manometer to adjust the working pressure for each broaching operation
Characteristics of the Machine:
- Motor power: 2,2 Kw / 3 Hp
- 3-phased tension: 230/400 V
- Hydraulic power: 10 Tn
- Max. broaching capacity: 25 mm
- Working speed: 24 mm/s
- Return speed: 54 mm/s
- Pump Flow: 7,5 liters
- Capacity of Hydraulic Tank: 25 liters
- Shank displacement: 600 mm
- Gooseneck: 300 mm
- Max. piece diameter: 600 mm (For different sizes, please ask the manufacturer)
- Bench dimensions: 420 mm x 420 mm
- Packing with steel pallet and retractile film
- Optional: Complete wooden packing NIMF15
The Hydraulic Broaching machines BM25 NARGESA is an ideal machine for maintenance workshops or medium production factories. All Nargesa products are manufactured in our facilities in Spain with hydraulic and electronic components that are completely standard from the best European leading trademarks such as Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato, etc
