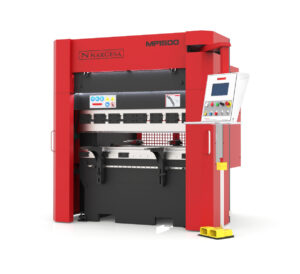

Hydraulic Press Brake MP1500CNC Features:
Folding length: 1500 mm
Tonnage: 40 Ton
All Nargesa products meet European CE regulations for industrial machinery manufacturing
Standard Equipment Included:
- Automatic control of vertical bending axis (Y axis)
- Back gauge with BOSCH REXROTH recirculating ball screw guides
- ESA servo motor automatic control of horizontal axis (X axis)
- Manual control of vertical axis (R axis) and transverse axis (Z axis) with parallel alignment and curvature adjustment
- Motorized vertical axis (R axis) of back gauge controlled by ESA servo motor
- Promecam punch clamping system with segmented flanges
- Euro Promecam system with die guiderail
- Promecam punch and die, reference PS.135.85.R08, and M.460.R respectively
- ESA numerical control, reference S630
- Adaptive electronic pressure control
- Chassis bending electronic compensator
- GIVI MISURE high-precision optical encoder
- Atos synchronized hydraulic unit with 24 VDC redundant safety valves
- Electronic compensation of hydraulic oil temperature
- Front arms that slide on linear recirculating ball screw guides for optimum sheet metal grip
- Side doors with electronic safety control
- High-frequency laser sensor system unaffected by external light sources
- Software-configured electronic muting system
- LED directional light strip for bending zone
- Ethernet 10/100 Mbit LAN connectivity
- USB 2.0 ports and VGA connector for updates, backup, and peripherals
- 10″ color touchscreen graphics interface, high-resolution, multi-language (over 20 languages)
- Basic software installed in the CNC control containing a full library of Promecam punches and dies
- Optional installation of software modules with bending simulator and CNC optimizer for the creation of 2-D graphics of bending program with the most efficient sequence
- Complete software for Windows PC with bending simulator and CNC optimizer for 2-D graphics programming of bending sequence, with full library of Promecam punches and dies
Technical Features:
- Punch working speed: 8.3 mm/s
- Return speed of the punch: 120 mm/s
- Lowering speed of the punch: 200 mm/s
- Maximum punch displacement: 200 mm
- Inner folding length: 1250 mm
- Total folding length: 1500 mm
- Back gauge displacement: 600 mm
- Neck: 270 mm
- Motor power: 5.5 KW / 7.5 HP
- Three phase power: 230 / 400 V
- Hydraulic Power: 40 Tn
- The machine is delivered completely assembled
All Nargesa products are manufactured in Spain and use standard hydraulic and electronic components from leading European brands such as Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, and Pizzato, with technical support available worldwide.
