Technical Features:
- Hydraulic power: 70 Tn.
- Working speed: 9 mm/seg.
- Return speed: 14 mm/seg.
- Punch displacement: 160 mm.
- Neck: 350 mm.
- Table dimensions: 600×350 mm.
- Swinging front safety protection.
- Activation with safety pedal.
- Digital display.
- Parts and strokes counter.
- Alarm diagnose.
- Motor power: 5,5 KW/ 7,5 HP.
- Tension 3 phase: 400 V.
- Palletized lower bench to move it easily to the working site or storage.
- The machine is delivered completely mounted.
- Packaging with steel pallet and 3-layered cardboard box suitable for sea freight.
- Optional: Complete fumigated wooden packaging NIMF15.
Punching:
All types of punches can be supplied, including round, square, oval, and lock punches. It’s also possible to punch a pipe.
Other Applications:

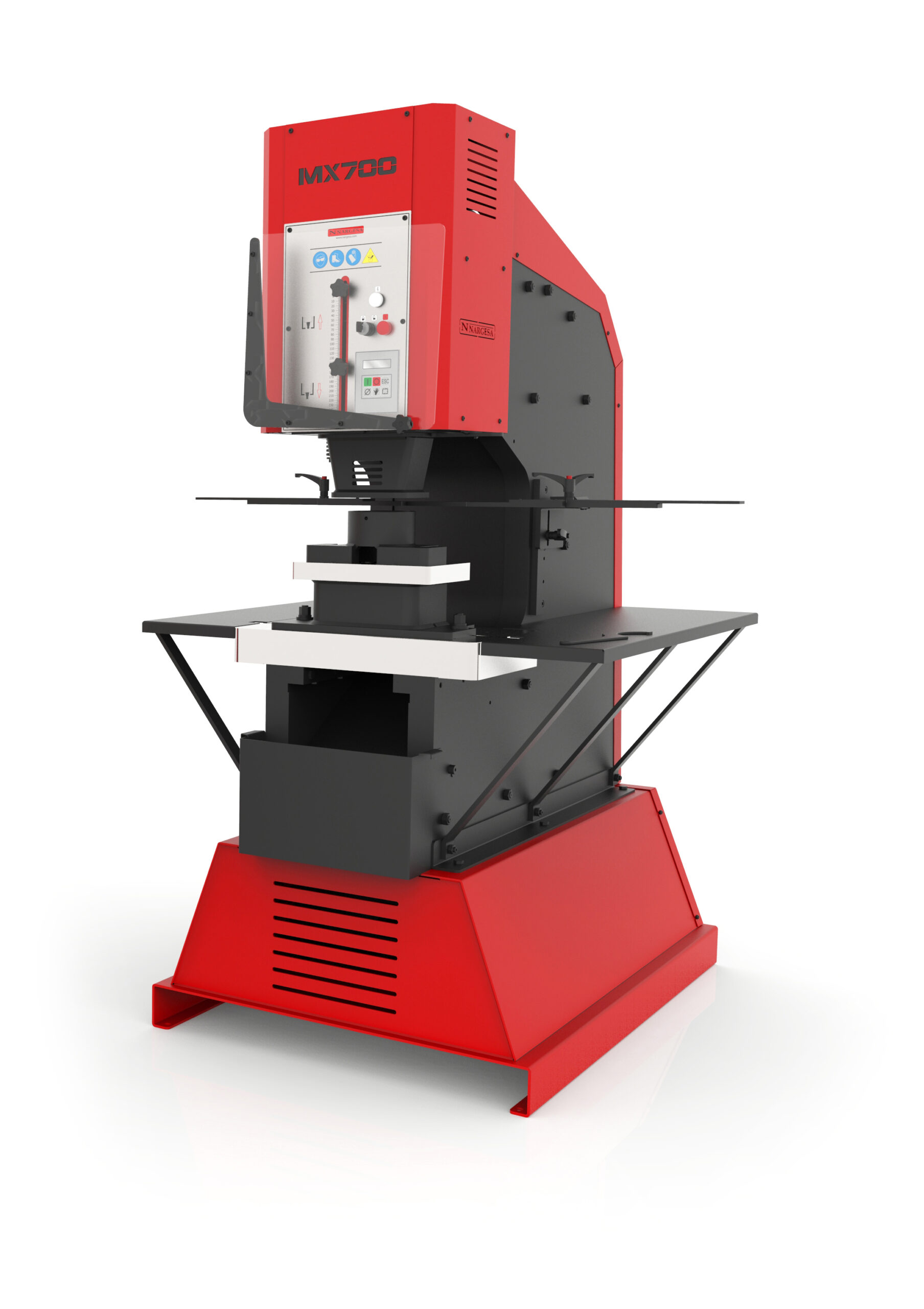

The MX700 offers over 40 standard tooling options to perform different jobs. See the Optional Tooling section at the bottom of the page for more information. If customers require it, custom tooling can be manufactured to make all kinds of parts.
Advantages:
The MX700 stands out from other multifunctional universal punching machines due to its 350mm gooseneck, 160mm displacement, and wide working table that can fit any kind of tooling. Many customers make their own tooling, and with a fast change of tooling in just 30 seconds, the MX700 allows for efficient productivity. Additionally, there is no maximum dimension for punching.
Standard Equipment:
All Nargesa Hydraulic Punching Machines come equipped with the punching tool that includes the fitting nut for punches and the base holder for dies. The rest of the accessories are optional, allowing customers to equip their machine as desired.
Manufacturing:
All of our products are manufactured in our facilities in Spain. Our hydraulic and electrical components are sourced from leading European trademarks, including Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, and Pizzato, offering technical support worldwide.
