SOCO F-PV-AV Series Tube Cutting Machine




Description

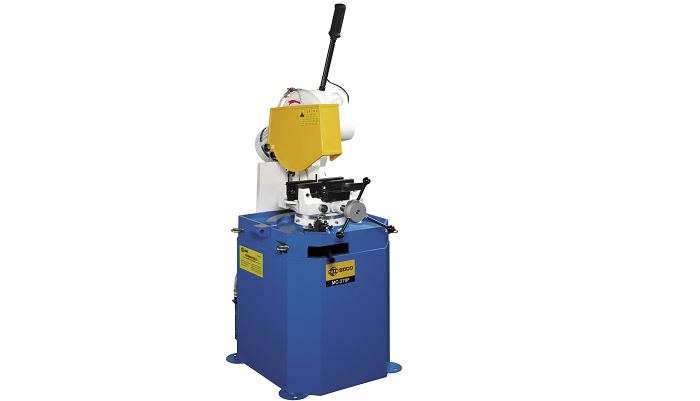

Model: SOCO F-PV-AV Series Tube Cutting Machine

With the SOCO F/PV/AC Series Tube Cutting Machine its possible to easily cut tubing and bar with a mitre using our range of machines. Available in three versions the F series is a manually operated. The PV series uses an automatic air clamping vice and the AC series utilises an automatic cutting and air clamping vice.

Features & Functions:

  • Tube Cutting Machine
  • Bar Cutting Machine
  • Burr-free and less dust
  • Fast, precise and clean
  • Mitre cutting
  • Cooling system
  • Length stopper
  • Optional 2 part clamps for thin wall tubing
  • Optional roller table

Specification

Specification ModelMC-275F/PV/ACMC-315F/PV/ACMC-370F/PV/AC
Cutting Angle45°90°45°90°45°90°
Cutting Capacity (mm)Round TubeØ80Ø80Ø100Ø100Ø100Ø100
Square Tube70 x 7075 x 7585 x 8590 x 90100 x 100110 x 110
Angle Bar70 x 7075 x 7585 x 8590 x 90100 x 100110 x 110
Rectangular Tube70 x 8075 x 9085 x 8585 x 110100 x 100110 x 110
Solid Round BarØ25Ø38Ø45Ø55Ø50Ø75
Solid Square Bar25 x 2538 x 3840 x 4050 x 5050 x 5075 x 75
Mitre Cutting45°-90°-45°30°-90°-45°30°-90°-45°
Main MotorA2&1.4hp, 2/4 Poles3&1.5hp, 2/4 Poles3&2hp, 2/4 Poles
B1.4&1HP, 4/8 Poles1.4&1HP, 4.8 Poles2&1.4HP, 4/8 Poles
Arbor RPM (60Hz)A120 / 60100 / 5088 / 44
B60 / 3050 / 2522 / 11
HSS Saw Blade Size (mm)Ø250/Ø275Ø275/Ø300/Ø325Ø300/Ø350/Ø370
Cooling System (HP)1/81/81/8
Pressure Air (kg)PV & AVPV & AVPV & AV
4 ~ 64 ~ 64 ~ 6
Weight (kg)FPVAVFPVAVFPVAV
180190220200210240260270300
Dimension (mm) (L x W x H)100 x 750 x 16101100 x 850 x 16101100 x 850 x 16101250 x 850 x 16101000 x 850 x 16101300 x 850 x 1610
