Horizontal Hydraulic Press Brake PP200CNC




Model: Horizontal Hydraulic Press Brake PP200CNC

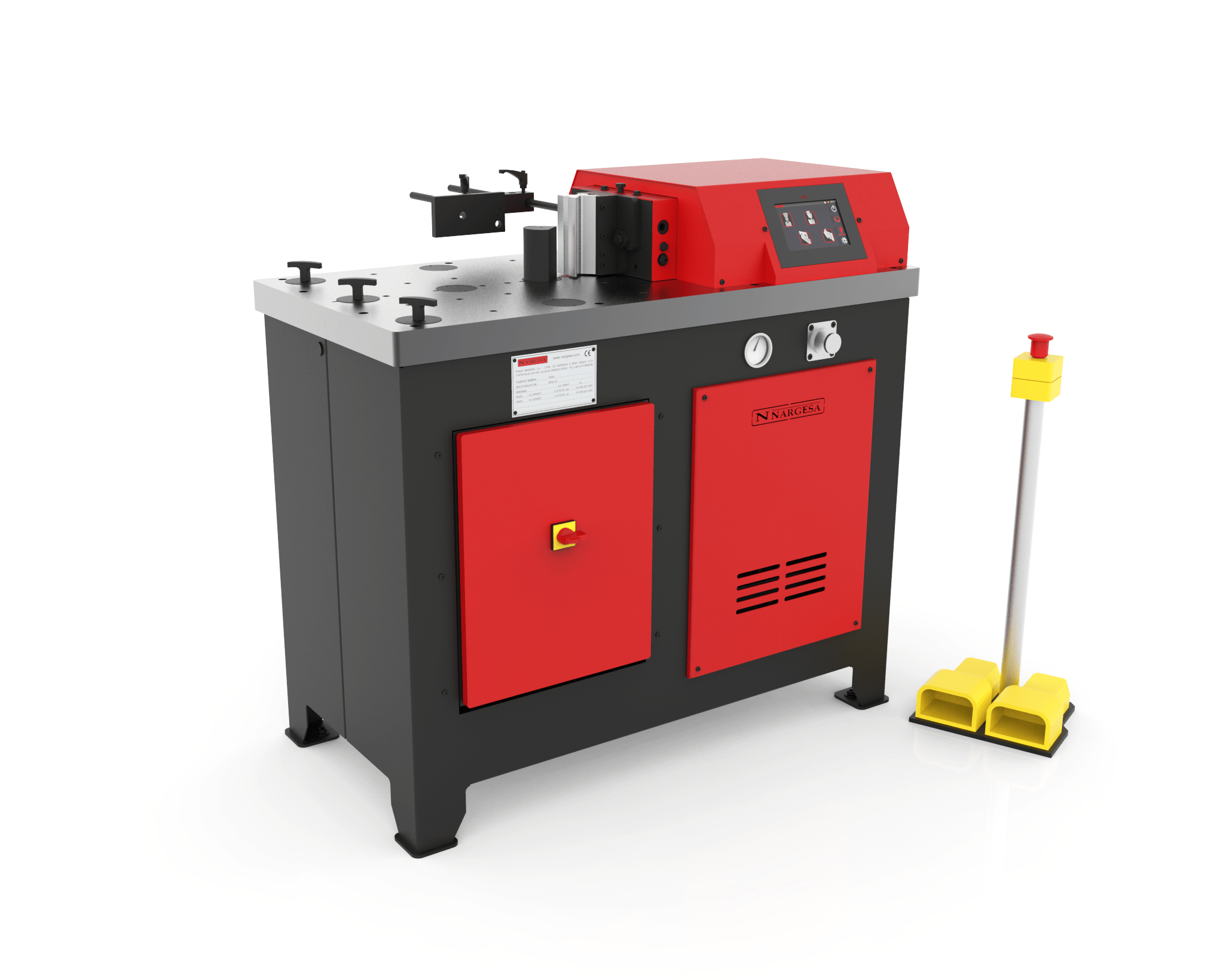

The Nargesa PP200CNC is a 20-ton horizontal press brake with CNC control panel featuring the latest 4.0 technology. This machine is designed for bending, folding, cutting, cold shaping, expand and reduce tubes, notching, inlaying, assembling, and other operations with maximum precision and speed.

Advantages:

New Control Panel: The CNC control panel is intuitive, easy to handle, and includes the latest 4.0 technology for more comfortable and accurate regulation.

ECO Mode: The machine includes an “ECO mode” that automatically disconnects the electrical parts that generate greater energy consumption if a period of inactivity is detected. This saves energy and contributes to the conservation of the environment.

Quick Start-Up: The machine is shipped fully assembled, requiring only connection to the electrical supply and running.

Versatility: Nargesa PP200 has a catalog with a great deal of optional tooling for a wide range of operations.

Easy Fabrication of Tooling: The customer or any toolmaker can manufacture dies and punches.

Gallery

PP200 CNC Metalworking Machinery with Langbow

Technical Features:

  • Working force: 20 Ton (200KN)
  • Working speed: 9.8 mm/s
  • Return speed: 35 mm/s
  • Max stroke: 245 mm
  • Repeatability: 0.05 mm
  • “ECO mode” Start/Stop in period of inactivity.
  • ESA S625 CNC control
  • Technology 4.0.
  • Storage of up to 10,000 programs.
  • Programming of 50 different angles in the same piece.
  • Programming in mm or inches.
  • Library of dies and punches.
  • Programming in more than 20 languages.
  • Automatic control of angle to fold in degrees.
  • Manual or automatic operating mode.
  • Automatic springback correction.
  • Counter of pieces.
  • Diagnosis of alarms on the screen.
  • Automatic warning of preventive maintenance.
  • Remote connection included.
  • 7″ color touch screen.
  • Safety Double acting hold pedal.
  • Mechanically Guided Piston.
  • Pressure regulator.
  • Tooling support table: 600×1170 mm.
  • Working height: 950 mm.
  • Engine power: 2.2 KW/3 HP at 1400 r.p.m.
  • Electric Tension: 230/400 V three-phased.
  • Intensity: 9/5 A.
  • Hydraulic pressure: 50 a 215 Kg/cm2.
  • Hydraulic pump: 7.5 litres/minute.
  • Tank Capacity: 27 litres.
  • Dies support shelf included.
  • Palletized lower bench to easily transport the machine up to its working or storage site.
  • The machine is sent completely assembled.
  • Packing included: Wooden pallet NIMF15 and three-layer cardboard apt for sea freight.

Uses:

  • The Nargesa PP200CNC is a versatile machine that can perform a wide range of forging parts and operations in various materials, including pipe, flat bar, several profiles, and rods.
  • Folding operations with wrought iron machines allow complete bending of parts or pieces, unlike conventional flat bar section bending machines.
  • Pipe bending at a fixed radius up to 150º is one of the other good features of these presses.
  • Stretching and reducing pipes on the ends makes it possible to make parts that fit or weld later.
  • Cutting, piercing, and punching flat bars or metal sheets turn this horizontal bending press into a punching shears machine.
  • Many workshops use these presses to stretch and form different kinds of profiles.
  • It is also a solution to bend different profiles at different radius and keep the ends straight, like when manufacturing
