Gas forge H3




Model: Gas forge H3

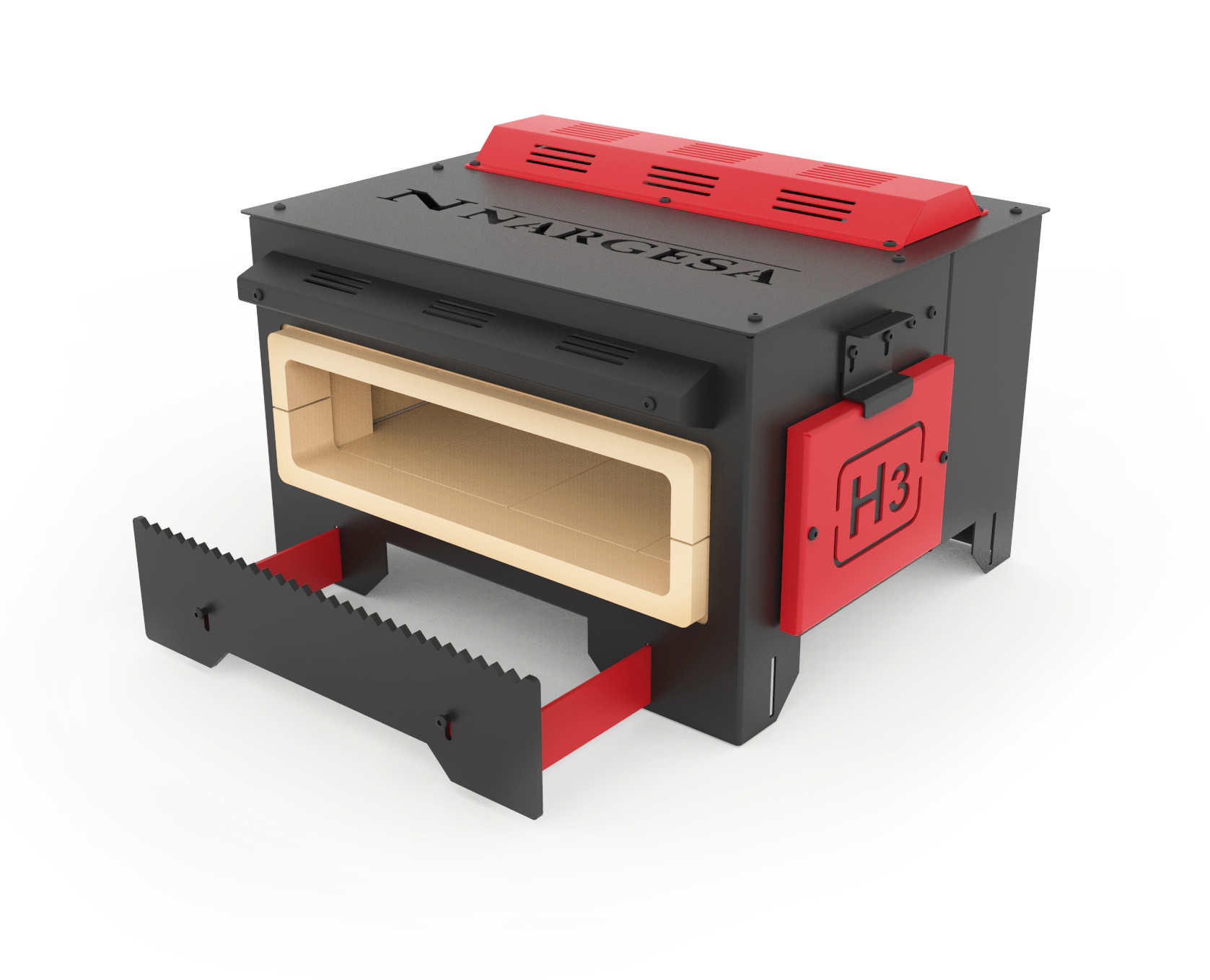

The Nargesa H3 is a new propane forging furnace that has been designed to be more efficient, safer, and more environmentally friendly. Equipped with two burners, it is capable of heating iron to high temperatures for various forging processes, including molding, bending, piercing, welding, tempering, forging, and shoeing horses.

One of the main features of the H3 furnace is its increased efficiency. It can consume up to 75% less gas and reach higher temperatures (over 1300ºC) than any furnace in its category. Additionally, the furnace is equipped with new security systems for the operator, ensuring compliance with the regulation RD919/2006. The furnace is certified by the General Laboratory of Tests and Investigations: APPLUS Technology Center.

Furthermore, the H3 furnace is 100% respectful with the environment. Its emissions are below 0.002% of CO, and it has an internal vermiculite coating that is 100% natural and recyclable. These features make the H2 furnace a more sustainable option for artists and blacksmiths who want to reduce their environmental impact while working with metal.

Gallery

H3 Metalworking Machinery with Langbow

Technical features

Advantages of the Propane Furnace H3 for the Forging

Safety:

  • The safety of the operator is one of the main premises when designing all Nargesa machines.
  • The H3 forging furnace has got all the necessary safety devices for the well-being of the operator that will handle it and it is according to the regulations in force in Spain, the Regulation of appliances that use gas as fuel RD919 / 2006.

Automatic electronic ignition:

  • Prevents the operator from inserting his hands in the combustion chamber to turn on the gas.
  • No tool is necessary to generate the spark.

Gas system integrated in the furnace structure:

  • The components were totally protected from impacts that could damage and cause leaks.

Insulation of the combustion chamber:

  • These elements are formed by a 100% natural material, compacted vermiculite, not harmful to health.
  • 100% recyclable as it does not include glass fibers or ceramics.

Anti-return valve:

  • This valve regulates the direction of the gas flow preventing it from being addressed to the cylinder.

Thermocouple safety valve:

  • This device closes the passage of the gas when the combustion chamber cools due to an anomaly, avoiding any possible leak.

Fuel consumption:

  • The consumption of Nargesa furnaces has been reduced in a 75%, that is to say, it consumes 1/4 of the fuel used by the same furnaces in its category.
  • With a LPG propane gas cylinder of 35Kg, the H3 Furnace will operate 35 hours with its three burners at full operation.
  • If we only use one burner, then performance will triplicate.

Gas losses:

  • There is no fuel waste, all the propane gas that enters the combustion chamber burns, without any sort of waste.
  • This process has been possible due to the new burners, which have been designed and manufactured by Nargesa.

Insulating material:

  • The insulating material of the combustion chamber, the compacted vermiculite, is a 100% recyclable material and does not generate waste, increasing the heating (thermic) power of the cavity, over 1300ºC.

CO Emissions:

  • The emissions emitted by the furnace are 0.002%.
  • In normal environment this value is between 0 and 2.
  • Certified by the General Laboratory of Tests and Investigations: APPLUS Technology Center.

Energy efficiency:

  • Saving energy is another topic that our R & D department takes into account for the furnace.

Respect for the environment:

  • It is totally unfeasible to manufacture machinery and not to take into consideration the planet we inhabit.

The Forge ovens H1, H2 and H3 comply with the current regulations in Spain, of the Regulation of appliances that use gas as fuel RD919/2006.

Technical characteristics:

  • The Nargesa H3 propane oven has three burners.
  • Gas hose made of stainless steel: this characteristic prevents it from collapsing and burning. This hose does not expire, so it is not necessary to replace it.
  • Precision pressure regulator with built-in pressure gauge, allows to adjust the gas pressure more precisely.
  • Integrated bar support and adjustable to the different

The Nargesa H3 forging furnace is an effective appliance due to its simplicity, dimensions, easy ignition, and fast reach of the optimum working temperature. It complies with the current regulations in Spain, specifically the Regulation of appliances that use gas as fuel RD919/2006. The Forge furnaces H1 and H2 also meet these regulations.
