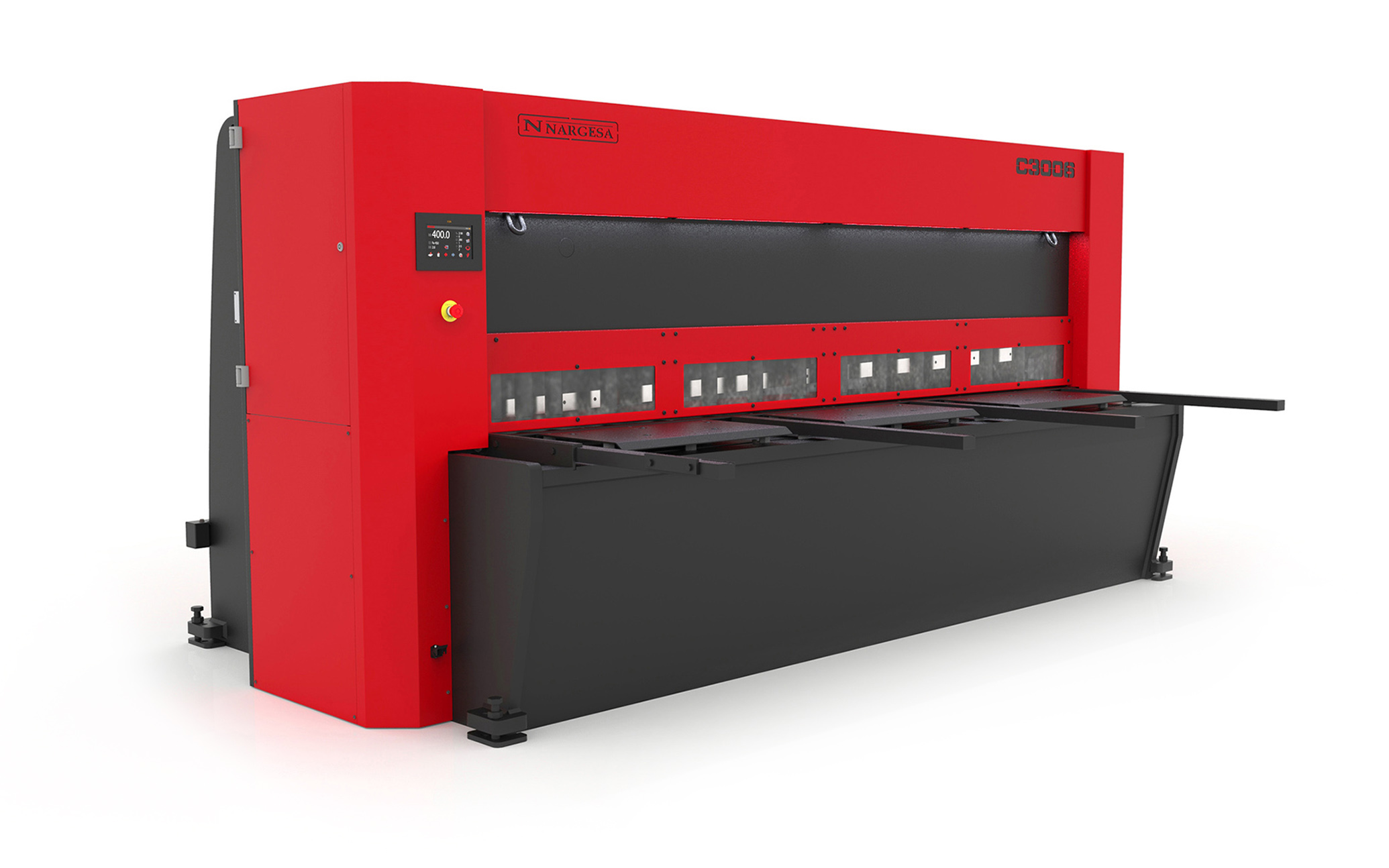

Hydraulic Shear C3006 CNC

Technical Features:

The last generation of NEW CNC vertical cutting Shears C3006, allows to cut any type of metal in a clean and accurate way. The main advantages of the vertical cut in comparison to the swing cut are:

Energetic Saving:

Resistance of material in vertical cut is much lower, which becomes a considerable energetic saving.

Cutting Quality:

Clean, perfect and accurate cut.

Life of the Blades:

The blades wear is almost nule. The life of the blades is 4 times higher than other shearing systems.

The C3006 CNC Shear comes with a high resistance structure that includes:

• One block bench, mechanized, equipped with spheres to ease up the movement of the sheet.
• Initial support machined to square of 1000mm with millimeter scale.
• Three 1000mm millimetered stand arms.
• LASER lightning on the cutting line.
• LED front lightning.
• Front polycarbonate protection screens that allow to see the cutting line.
• Cutting of narrow strips without distortion.
• 4-cutting edged upper and lower blades, with 90º angle, long lasting and the proper ones for cutting of steel.
• Driving with safety pedal and emergency stop.
• Back overture with safety optoelectronic devices.
• Low noise level, improving the quality of work of the operator.
• Ramp of material extraction located in the lower part of the cutting zone allows the material to slide down to the extraction area.
• Cutting length​: 3055mm.
• Cutting capacity: 6 mm in steel (450N/mm2) andy 4 mm in S.S.(700N/mm2).
• Gauge displacement​: 700 mm.
• Goose neck for cuts with bigger length: 173 mm.
• Strokes per minute: 12 Strokes. (All length).
• Hydraulic rammers: 15 units.
• Fix cut inclination: 1,75º.
• Motor power​: 9,6 KW / 12,87 CV.
• 3-Phased tension: 230/400 V. 50/60 Hz
• Hydraulic Pump: 22 liters.
• Container capacity: 96 liters.
• The machine is delivered completely assembled.

The shear also features a precision rear gauge, which is fixed to the structure, with accuracy and repeatability of positioning from +/- 0,1mm and low maintenance thanks to the use of low friction elements.

The ESA S625 Compact CNC control interface is very intuitive and easy to use. It has an internal database of materials and configuration of the piece length by the CNC. The shear also comes with an enhanced hydraulic group that has automatic regulation of the cutting pressure depending on the need for cutting power and automatic regulation of the pressure of the sheet fastenings.

All of our products are produced in Spain in our own facilities. Our hydraulic and electronic components are sourced from the top European brands, such as Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, and Pizzato, ensuring they are of the highest quality. We offer technical service and support for our products globally.
