SOCO FA Series NC Automated Tube Cutting Machine

Description

SOCO FA Series NC Automated Tube Cutting Machine – Precision & Performance

Langbow supplies SOCO FA Series NC Automated Tube Cutting Machines, designed for high-precision, efficient, and reliable cutting of steel, stainless steel, and solid bars. Our tube sawing machines UK are ideal for automotive, aerospace, fabrication, and general engineering applications.

If you’re looking for high-performance NC automated sawing machines in the UK, Langbow provides the full SOCO range. Contact us today.

Features & Benefits:

Accurate tube cutting for steel, stainless steel, and solid bars
Electric servo feeding ±0.05 ~ 0.1mm precision per stroke
Capacity up to 127mm tube and 100mm solid bar
Flexible gripper feeding for straighter and curved material
Speed inverter for 22 ~ 108RPM for faster production
Reduced material waste and consistent quality

Why Choose Industrial Tube Sawing Machines?

Choosing an NC automated tube cutting machine ensures greater accuracy, speed, and consistency compared to manual or traditional cutting methods.

Faster and more precise than manual cutting
Ideal for high-volume production runs
Suitable for steel, stainless steel, and non-ferrous materials

Contact us today to request a quote for our high-performance tube sawing machines UK.

SOCO FA Series tube sawing machine for precision cutting

SOCO FA Series NC Automated Tube Cutting Machine Specifications & Features

Specification Model	HHVS375AC		HVS400AC		FA111DR	FA111NC	FA127DR	FA127NC
Cutting Angle	90°	45°	90°	45°	90°	90°	90°	90°
Round Tube	Ø110	Ø110	Ø125	Ø125	Ø114	Ø114	Ø127	Ø127
Square Tube	110 x 110	95 x 95	125 x 125	100 x 100	110 x 110	115 x 115	115 x 115
Round Bar	Ø75	Ø55	Ø100	Ø70	Ø75	Ø75	Ø90	Ø90
Square Bar	70 x 70	50 x 50	90 x 90	75 x 75	70 x 70	70 x 70	90 x 90	90 x 90

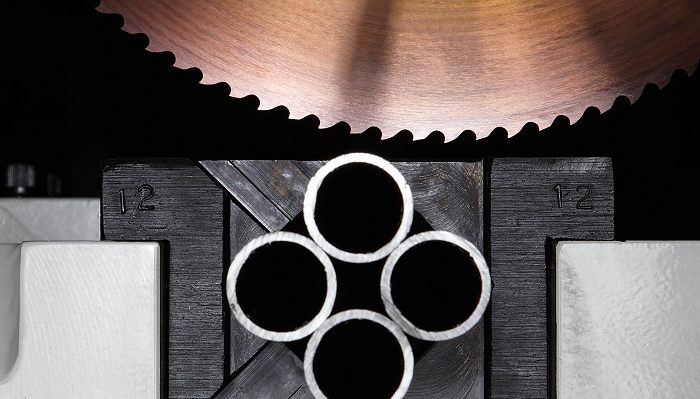

Multiple	Optional V-type clamping jaws. Maximum 9 pieces cutting capacity (depending on the size of the tubes.)
Type	A	B	A	B
Main Motor	3/6	2/8	5/3, 2/4	5/4, 2/6	5/4		5/4
Arbor RPM	72/32	55/22	44/22	22/16	22 ~ 108 (Spindle speed with inverter)		11 ~ 44 (Spindle speed with inverter)
HSS Saw	Ø250 ~ Ø370		Ø250 ~ Ø400		Ø250 ~ Ø370		Ø250 ~ Ø400
	HSS – Arbor hole Ø32, Pinhole 2 x Ø11 x 63 PCD
TCT Saw	Ø285 ~ Ø360 – By request ( )
Feeding Length (mm) *	–				DR (S): 10~600 x 1~3 times (Max. length is 1800) DR (E): 10~1000 x 1~3 times (Max. length is 3000) NC/NC-SN (S): 10~550 x Unlimited Times NC/NC-SN (E): 10~950 x Unlimited Times
Crop Length	–				60 α (NC Line) 20 α (NC-SN Line) α = Cutting Length
Hydraulic System	2HP-4P Pump, Working Pressure 25 ~ 35kg/cm²				2HP-4P Pump, Working Pressure 35kg/cm²		3HP-4P Pump, Working Pressure 45kg/cm²
Cooling System	0.12HP, Water Pump, Automatic coolant circulation				1/2HP, Water Pump, Automatic coolant circulation		1/4HP, Water Pump, Automatic coolant circulation
Total Power	3.2 or 4kw		5.4kw		6.4kw	9kw	6.4kw	9kw
Weight (Kg)	400		460		1565 (S) 1650 (E)	1600 (S) 1700 (E)	1650 (S) 1750 (E)	1700 (S) 1800 (E)
Dimension (mm) (L x W x H)	700 x 1500 x 1750 (S)				DR (S): 2310 x 1100 x 1850 DR (E): 3050 x 1100 x 1850 NC (S): 2200 x 1200 x 1900 NC (E): 2600 x 1200 x 1900

* For cutting lengths over 500mm, it is recommended to add an Output Table (RTO)
To use TCT Saw Blades, SOCO will recommend to appropriate based on cutting requirements and material properties
S Standard
E Extended

Click here to see our full range of New Tube Machines. All our new tube finishing machines are available with a 5-year warranty with optional service contracts tailor-made to keep your machinery for tube working efficiently.
