MC650 section and pipe bending machine

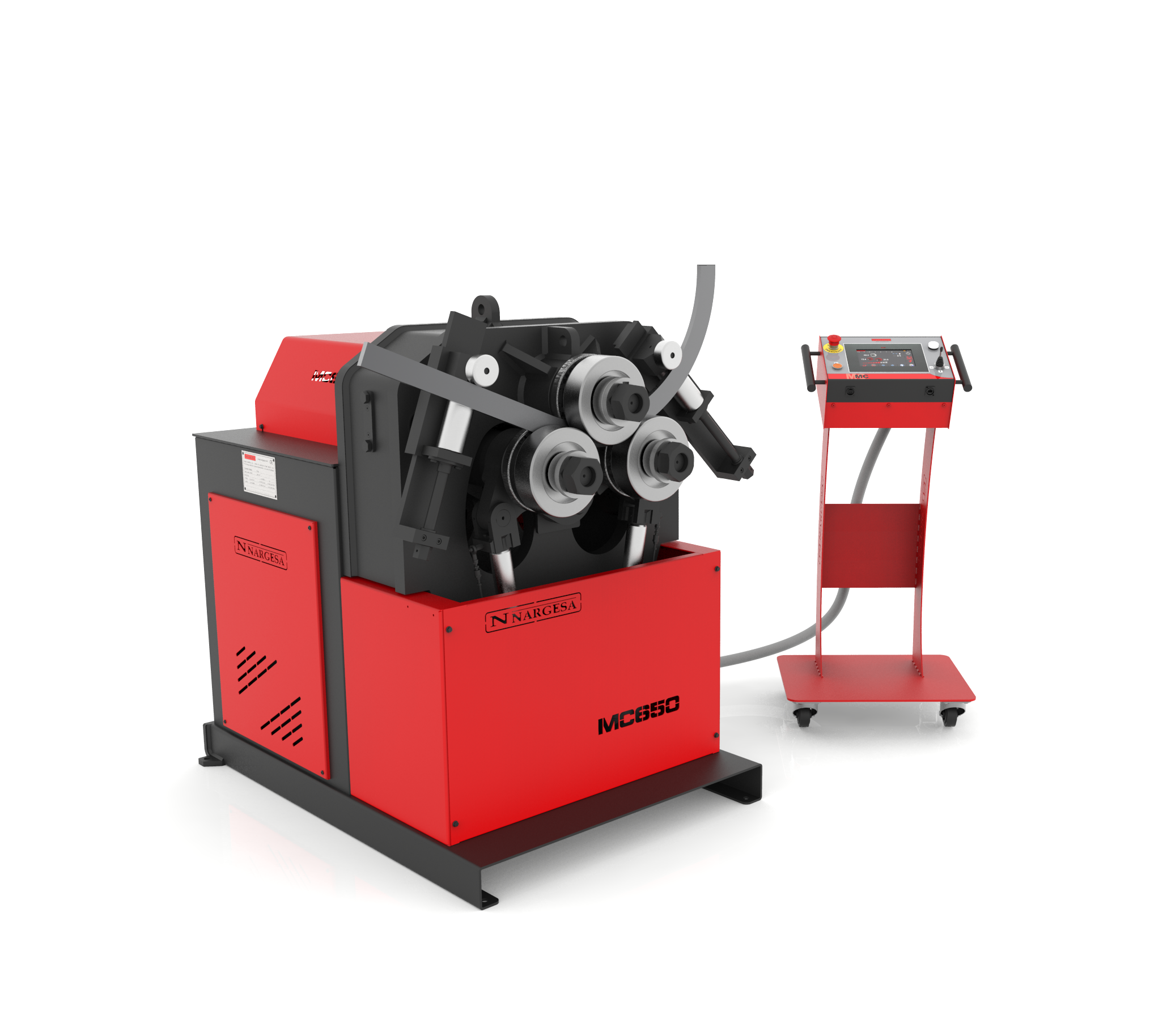

Model: MC650 section and pipe bending machine

The MC650 Nargesa section and pipe bending machine is designed for mass production, allowing the saving of the position of the rollers in each curve to repeat the same operations later, without longitudinal positioning control.

It is ideal for manufacturing flanges, greenhouses, railings, large structures for construction, circular beams for roofs, domes, bridge abutments, metal pergolas, curved marquees, structures for tunnels, street lamps, protections for roundabouts, bicycle parking stands, tree protectors, railings, public transport marquees, bollards or moveable bollards, children’s play parks, and all sorts of circular figures in different large and small sections and tubes.

Gallery

MC650 Metalworking Machinery with Langbow

Technical Features:

  • Robustness, axis diameter, reduction capacity, Control Panel, and 4.0 Technology make it one of the best bending machines on the market in the three-driven roller category.
  • 4.0 Technology allows for remote software updates and anomaly detection, along with other advantageous features.
  • All-new EcoMode automatically disconnects the electric parts consuming the most energy, saving energy and promoting sustainability.
  • Made of welded and machined sheet steel, providing stability and durability.
  • Vertical and horizontal position capabilities for versatility.
  • Electronically-controlled asymmetric roller position, providing variable distances between centers and smaller radius bends.
  • 3 power rollers with a 3-roller drag system make bending work faster and prevent possible marks on the material.
  • Side hardeners on the MC650 model can correct profile bends in up to 6 different planes and force the profile to create a spiral.
  • Rotation speed and programmable axle adjustment for efficient and streamlined bending work.
  • Equipped with 9 standard rollers for making various profiles, with optional rollers available for round pipe or tube.
  • Maximum capacity for bending round pipe: 4” inches or 101.6 mm.
  • Three traction rollers with a smooth surface to prevent damage to the pipe or profile.
  • Safe transmission between tempered planetary pinions by induction.
  • Tempered and rectified F-154 steel axles.
  • Electrohydraulic drive system.
  • Diameter of the lower axles: 65 mm, diameter of the upper axle: 80 mm, net length of the axles: 130 mm, and outer roller diameter: 202 mm.
  • Bend regulation independent of the lower rollers allows for smaller bends in diameter and better use of material.
  • ESA S625 panel comes with the machine.
  • Main motor: 3 KW/4 CV, hydraulic motor unit: 0.75 KW/1 CV, 3-phase voltage: 230/400 V.
  • Adjustable roller speed: from 3 to 7 RPM.
  • Palletized lower table for easy movement to the working site or storage.
  • Wooden pallet and 3-layered cardboard box suitable for sea freight, with optional wooden packaging NIMF15.

All Nargesa products are manufactured in Spain and adhere to CE standards for manufacturing industrial machinery. Hydraulic and electrical components are standard from leading European trademarks, with technical support available worldwide from Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato, and more.
