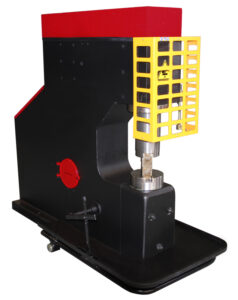

Power Hammer MP60

Technical Features:

The Power Hammer MP Nargesa operates using two cylinders, one at the back and another at the front which impulses the stem for the stroke. The motor for the power hammer moves the rod of the back cylinder or compressor and the compressed air goes to the front cylinder through the valves that control the stroke displacement.

• Compressor incorporated: No need for any external compressor.
• Frame made of welded and mechanized steel, it isn’t made of casting.
• Automatic greasing system.
• Cylinders made of GG2I to ensure a good performance.
• Orientable cylinder to ease up the operative’s work.
• Front protection against any projections.
• Protection for the driving pedal.
• Electric protection of the engine.
• Emergency stop.
• Moulds made of a special steel to stand big impacts at quite high temperatures.
• Great variety of tooling and exchangeable moulds. (For more information, see Optional Tooling at the bottom of the page).
• Manufacturing of tooling as requested.

Advantages of the Power Hammer MP60

The Power Hammer MP60 makes the job of moulding hot iron easier and has different tooling options to inlay, mould, give shape, cut, pierce, rivet, and emboss all kinds of metal. It has several advantages, including:

• No need for any external compressor.
• Frame made of welded and mechanized steel.
• Automatic greasing system.
• Orientable cylinder to ease up the operative’s work.
• Moulds made of a special steel to stand big impacts at high temperatures.
• Great variety of tooling and exchangeable moulds.

Technical Specifications:

• Nominal dropping weight: 60 Kg.
• Strokes per minute: 220
• Strokes max. displacement: 230 mm.
• Max. round working capacity: 70 mm.
• Max. square working capacity: 60×60 mm.
• Engine power: 5,5 Kw.
• Weight: 1190 Kg.
• The machine is sent completely assembled.
• Packing with wooden pallet and retractile film.
• Optional: Complete wooden packing NIMF15.

All Nargesa products comply with the CE normative and regulations for the manufacturing of industrial machinery. The hydraulic and electric components are completely standard from the best European leading trademarks, with technical support all over the world, including Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato, etc.
