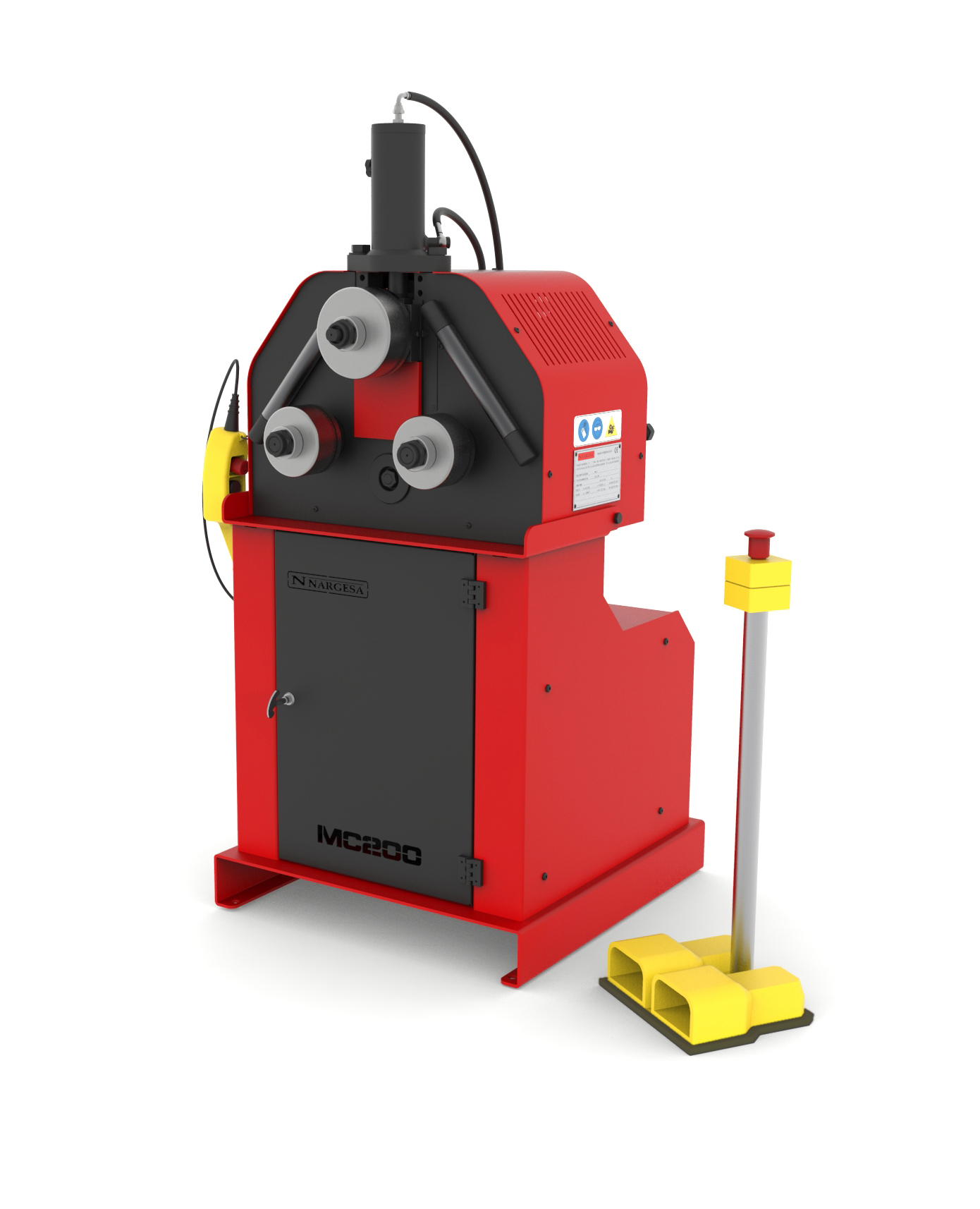

Hydraulic section bending machine MC200H




Model: Hydraulic section bending machine MC200H

The MC200H NARGESA hydraulic section bending machine is constructed of steel with two traction rollers and pinion transmissions. The treated and rectified axis can handle a maximum capacity of 2″ 1/2 inches or 70mm for bending round pipes.

The welded and mechanized steel sheet Profile Former MC200H NARGESA is ideal for creating circular shapes in various profiles, such as flanges, greenhouses, balausters, tables, chairs, doors, and windows. Unlike other machines, this one is not made of cast iron, and its robustness, axis diameter, reducer capacity, and other features make it one of the best bending machines in the market, within the category of two traction rollers. All Nargesa products conform to European directives and regulations CE for manufacturing industrial machinery.

Gallery

Tube Bending Machinery from Langbow Based in the UK and Ireland
MC200H Metalworking Machinery with Langbow

Technical Features

  • The machine has two traction rollers, with the two lower rollers being knurled and motorized to achieve a better traction.
  • The transmission is safe due to treated and flat pinions, and the axis is treated and rectified.
  • The axis diameter is 40mm, and the useful length of the axis is 74mm.
  • The center distance between lower axes is 286mm.
  • The maximum capacity for bending round pipes is 2″ 1/2 inches or 70mm.
  • Bending regulation is achieved through the hydraulic piston in the upper axis, which allows for bending operations in large pipes and profiles diameters without any distortion or effort.
  • The machine is equipped with 9 standard rollers and washers, allowing for the creation of all kinds of profiles, such as square pipe, rectangular, solid square bar, round and rectangular, U profile, T profile, angle, flat bar, edge flat bar, and more.
  • The course end includes a millimeter scale that enables adjusting the bending limits in a simple, practical, and reliable way.
  • The machine can be used in both vertical and horizontal positions on the same table.
  • Side corrector rollers ensure bending operations are precise, allowing for spiral bendings.
  • The engine power is 1.85KW / 2.5CV, with 3-phased tension of 230/400V. For single phased machines, request a quotation.
  • The rollers speed is 8 RPM.
  • The lower table is palletized for easy transportation to the work site or storage.
  • The machine is shipped fully assembled, and the package includes a steel pallet and a 3-layered cardboard box suitable for sea freight. Optional wooden packaging NIMF15 is available.

The MC200H NARGESA hydraulic section bending machine’s robustness, diameter of the axis, reducer capacity, fastening power using the hydraulic piston, and other features make it one of the best bending machines in the market within the category of two traction rollers.

All Nargesa products are manufactured in Spain. The hydraulic and electrical components are standard and from leading European trademarks such as Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato, etc., with technical support available worldwide.
