Description
Model: PT Series Tube Bending Machine

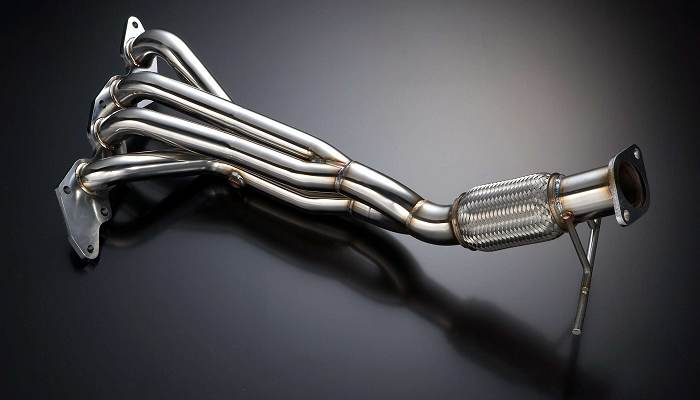

The PT range of booster tube bending machines has been designed to manufacture manifolds and converter inlet pipes for use within the automotive exhaust industry. Because the wall thinning ratio must be controlled to ensure the pipe can withstand the high pressure of the exhaust system the PT series tube bending is the ideal machine of choice.
All new tube bending machines are provided with a 5-year warranty along with optional service contracts to ensure that your tube bending machine is well maintained and running efficiently.
Features & Functions:
- Booster tube benders capable of bending radius of 1xOD and controlling wall thinning during the bending process;
- All-electric tube bender models available (12 Electric Axis);
- Electric or Hydraulic Proportional Servo Tube Bending;
- Boosting power from 3 Tons ~ 22 Tons;
- Enables wall thinning rate down to 15% ~ 20% in 1D Bending;
- On electric tube benders, this lines uses SOCO patented DGT (Direct Gear Transmission) for maximum bending efficiency and precision, minimizing transmission points of interference;
- 2C – SOCO DBS Cutting System (Double Blade Shearing) – Option for full automation and minimal curring deformation, as well the smallest cutting radius to minimize waste between bends (Optional);
- Standard with 4 ~ 12 Servo controlled axis;
- May use from 1 ~ 6 bending stacks applicable for complex, bend in bend parts;
- May use stackable, multiple pressure dies of single pressure die system (patented – 10 ~ 12 axis model);
- Short / last bend boosting system for parts that are bent close to the interference zones;
- Clutch (Automatic Transmission) Feeding System, enabling shifting between high speed and high torque (boosting) for highest bending efficiency;
- May program up to 4 different parts for bending cutting the same tube;
- May use internal or external collet system (Optional);
- IB – Interface Zone Booster for short pieces (Optional).
